Welcome Shop Management Systems (SMS) vendors! The Worldpac Developer Portal provides application developers documentation, sample code, and access to the SMS Vendor API Integration Guide for speedDIAL 2.0 - let's get you up and running fast! Have questions? Check out the Support section.
Terms and Conditions
By accessing or using this site and the Worldpac APIs, you agree to be bound by the terms and conditions setforth herein. Please read the Terms of Use for complete information.
This documentation provides information to help web-based SMS application developers get started using the speedDIAL 2.0 SMS API. Users of this documentation should have a general knowledge of web-based APIs and how they are used to authenticate and interact with databases and other applications. See the Getting Started section which describes the prerequisite API keys and tokens and how to obtain them. Additional technical resources which can be useful are listed in the Resources section.
About Worldpac
Headquartered in Newark, CA. USA, Worldpac is an importer and distributor of original equipment and quality aftermarket replacement automotive parts. Our speedDIAL catalog offering includes hundreds of thousands of products and millions of applications for all major vehicle makes. We provide product expertise and brand-recognized automotive parts directly to independent import and domestic service centers in the US, Canada and Puerto Rico with Same-Day delivery and Nationwide shipping options. Worldpac also offers customer services including our highly-praised technical and business training and other industry-leading events.
Getting Started
To get started integrating a Shop Management System (SMS) application using the speedDIAL 2.0 SMS API, you must obtain your unique vendor API Key.
Becoming a SMS Vendor
To become a qualified SMS Vendor and obtain an API Key, please email the API Integration Team at: [email protected] Please include the following company information:
Company Name
Full contact information
Associated SMS brand name
Number of years in business
Please allow 2 business days for a response from the API Integration Team. Qualified vendors will be listed on the Worldpac web sites under speedDIAL SMS API Integration
API Access Requirements
To setup a SMS API connection and obtain order information from speedDIAL 2.0, the SMS vendor will need to provide their Vendor Credentials and Customer Credentials.
Vendor Credentials
To setup a SMS API connection, the SMS vendor will need a unique API Key. To obtain an API Key, please see: Becoming a SMS Vendor
API Key
Note
When you receive your API Key, you will also receive a set of test customer credentials to be used for development. Once in production, you can drive your speedDIAL 2.0 customers to the How to create an API Token in speedDIAL 2.0 section to have them generate a unique API Token for their account.
Customer Credentials
To setup a SMS API connection your customer will need to provide the following credential information. These customer credentials will be stored in the SMS Vendor's system and used to create API punchout sessions.
Customer must have an existing Worldpac speedDIAL 2.0 account that is in good standing.
Record the API Token for integrations purposes immediately after generating, you cannot retrieve this token later!
Be descriptive when naming your API Token - include the SMS service name that will be using the token and the date provisioned
Warning
Use caution when deleting API tokens - the 3rd-party SMS vendor using the token will no longer be able to authenticate on your behalf!
Connecting to the API
To connect to the the SMS API, a punchout session must be created. A punchout session is an authenticated, limited-time connection to the Worldpac speedDIAL 2.0 SMS API. Creating a punchout session is a two-step process (see diagram below) using your API credentials to request a punchout URL. The punchout URL is used by passing a specific command and associated parameters. See Command Reference Section.
Creating a Punchout URL
To create a punchout URL, use the baseurl and parameters listed below. A sample request and possible responses are also included below.
Tip
A punchout session token is valid for 12 hours. The token 'expiration' time is returned in the epoch format.
punchout Base URL
POST https://speeddial.worldpac.com/punchout/v1/create
POST Data Params
Name
Type
Description
apiKey
string
The API Key for your company
apiToken
string
The customer API Token created in the speedDIAL client
accountNo
string
The customer account number
username
string
The customer speedDIAL 2.0 username (usually an email address)
country
string
US, Puerto Rico and Territories: US or US QA
Canada: CA or CA QA
smsVendorName
string
The name to display in the footer of speedDIAL
referenceId
string
The name to display in the footer of speedDIAL
webhooks.order
string
The URL to POST back details about an order submitted to WORLDPAC
webhooks.quote
string
The URL to POST back recently priced product quotes
webhooks.callback
string
(OPTIONAL) A URL the browser will switch to once an order has been exported to the SMS Vendor
punchout Example
POST https://speeddial.worldpac.com/punchout/v1/create
The punchout URL returned when creating the punchout session is used to send commands to the Worldpac SMS API. The punchout URL contains a placeholder for the command to be used: {command}. Replace this placeholder with a command along with associated parameters or data, depending on the method. Once constructed, use the punchout URL to open a new browser window to speedDIAL 2.0. See command reference below.
Punchout URL
POST http://speeddial.worldpac.com/punchout/v1/{command}?token={token}
Command Reference
A list of Worldpac SMS API commands and Web Hooks are listed below. Commands that start with the word Show are intended to be loaded in a new browser tab by the SMS vendor, and will land the user on the speedDIAL client.
All other commands are API requests with a JSON response.
This webhook is called if the user chooses to Export & Submit an order. This will submit to WORLDPAC, and transfer the order details back to the SMS, using the webhooks.order webhook URL.
This webhook is called if the user chooses to Export an order. This will only transfer the order details back to the SMS, using the webhooks.quote webhook URL.

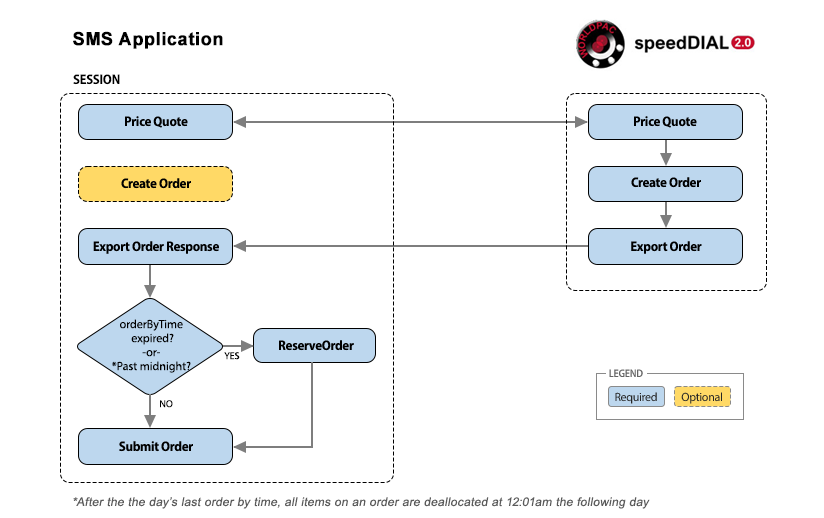

The diagram below depicts the flow when using the Export button in a speedDIAL 2.0 order. When exported, order data is supplied to the SMS application using the webhooks.order URL supplied in the ShowCatalog API request.
Resources
The Resources section contains various related automotive standards and the JSON specification.
JSON Specification
JSON is a lightweight, text-based, language-independent syntax for defining data interchange formats. It was derived from the ECMAScript programming language, but is programming language independent. JSON defines a small set of structuring rules for the portable representation of structured data.
The Aftermarket Catalog Exchange Standard (ACES®) is the aftermarket industry data standard for the management and communication of product fitment data.
While ACES® is an open-source standard, some attribute values require a paid subscription to access the latest automotive vehicle and part data.
Product Information Exchange Standard (PIES™)
The Product Information Exchange Standard (PIES™) is the aftermarket industry data standard for the management and communication of product information.
While PIES™ is an open-source standard, some attribute values require a paid subscription to access the latest automotive vehicle and part data.
Support
Contact a Worldpac Sales representative for answers to general questions about Worldpac products and services. See Getting Started if you want to become an API customer.
Existing Web Partners and SMS Vendors can contact the Worldpac API support team with any technical questions, concerns, or bug-reports regarding Worldpac APIs.
